Standing seam metal roofing
Particularly suitable for situations where the copper roofing must integrate harmoniously into a well-defined context.

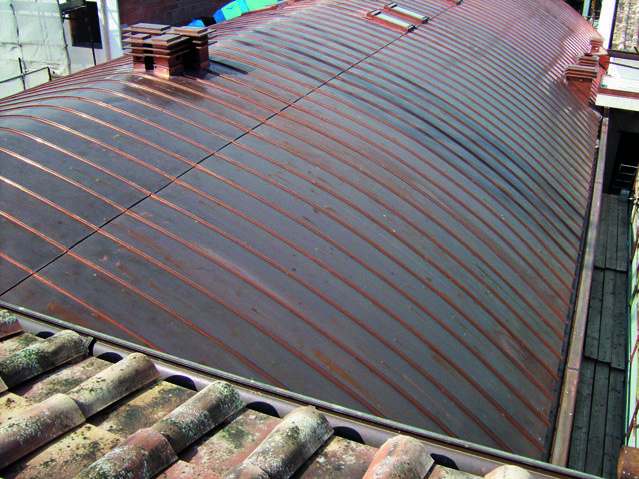

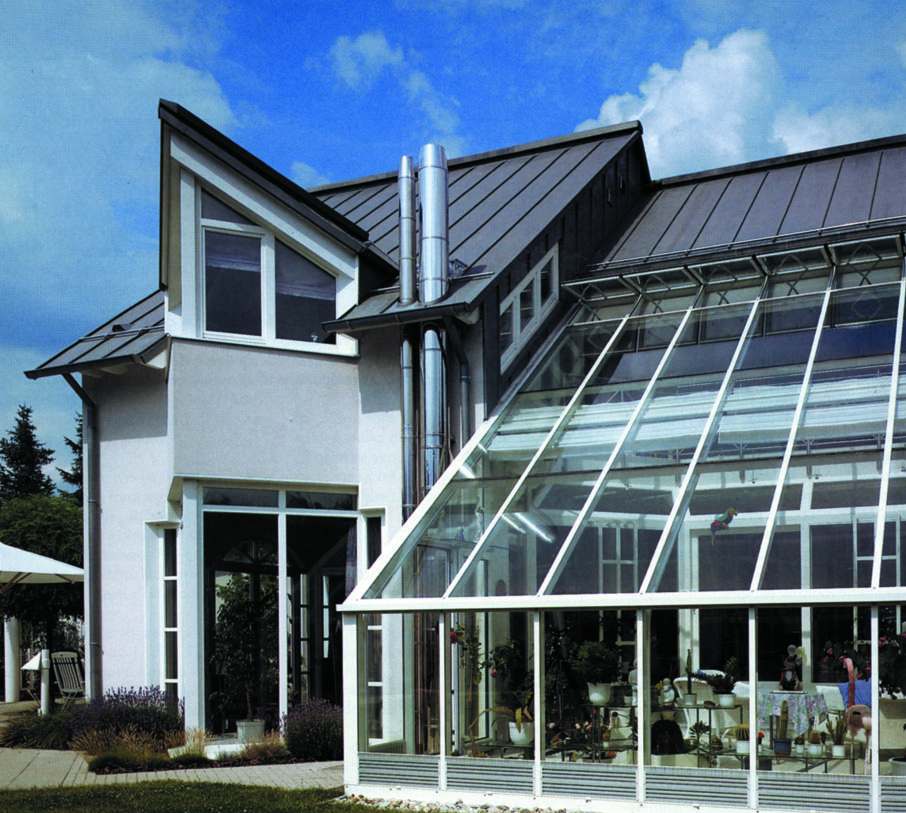

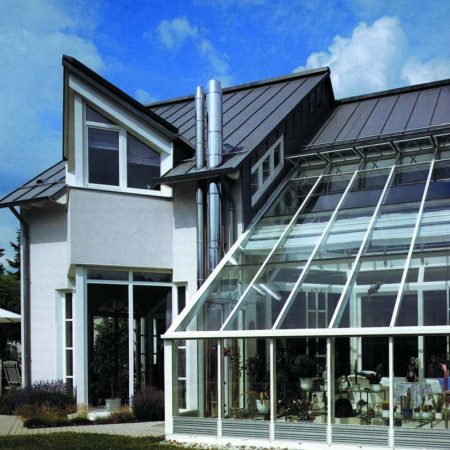

This type of metal roofing is particularly suitable for residential constructions and for renovation works, where the roofing must be able to integrate harmoniously in a well-defined context without altering its aesthetic-architectural balance.

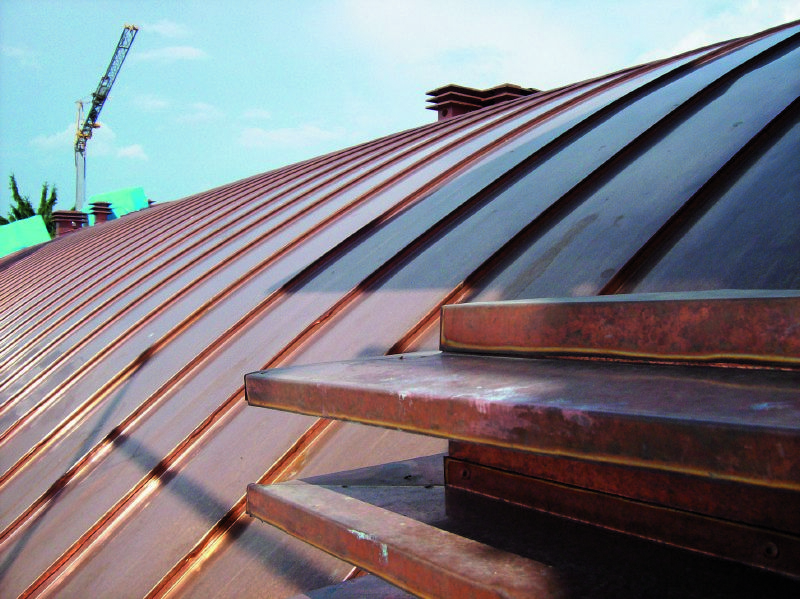

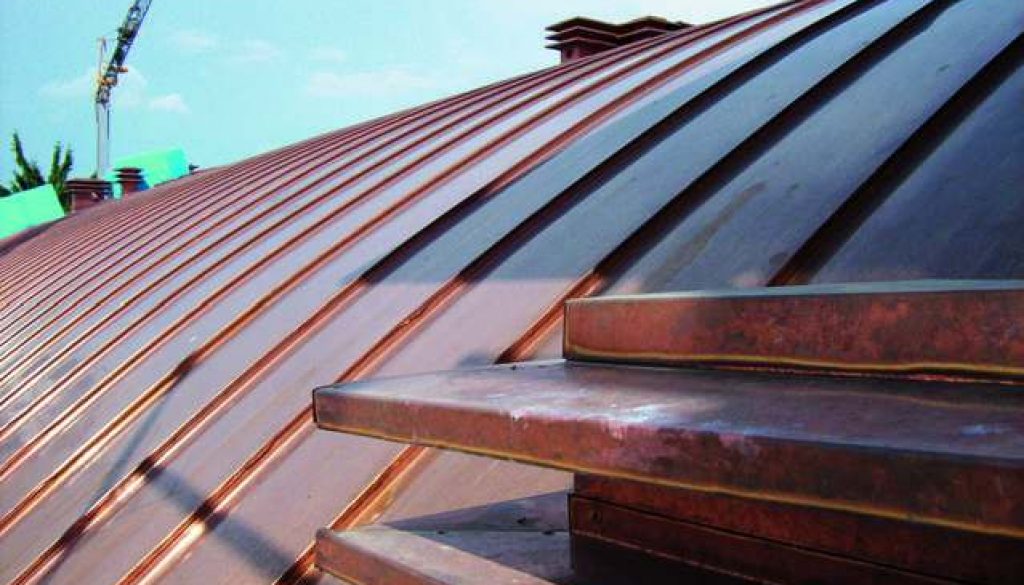

It is made with a particular standing seam, simple or double, variable in relation to the slope of the supporting substructure, to which the lateral edges of contiguous longitudinal metal sheets are anchored by means of special clips.
The clips (fixed or mobile) are attached along longitudinal lines and then integrated into the roofing with a particular crimping operation performed on the slabs.
The installation technique is the result of 40 years of experience and special technical preparation, such as to guarantee complete impermeability to water, wind resistance and expansion of the material caused by seasonal and daily temperature variations.

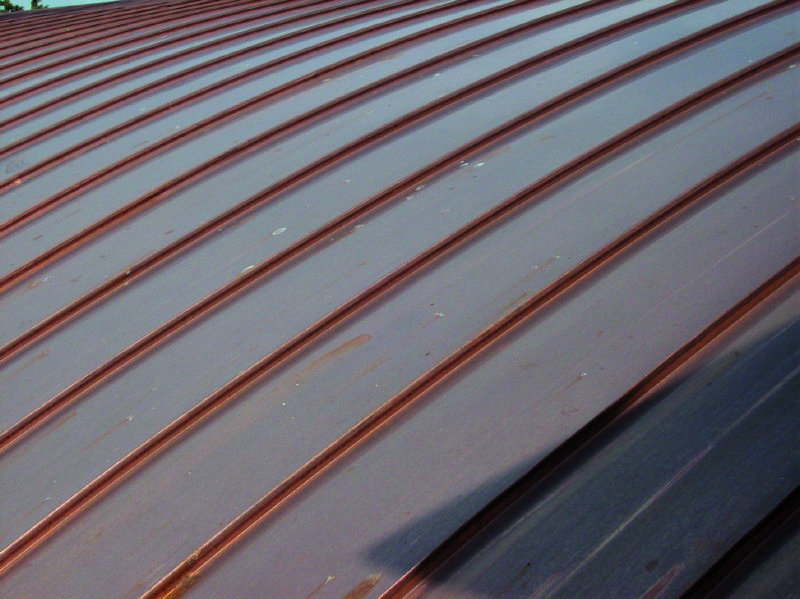

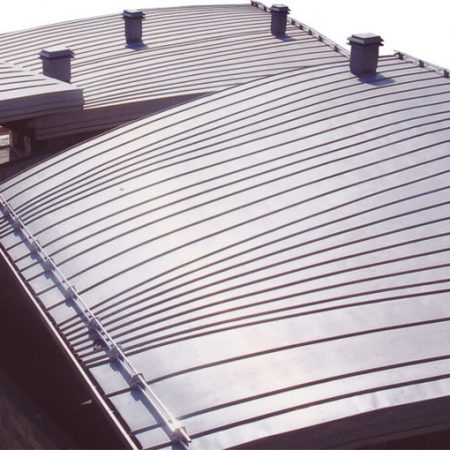

The aesthetic result is a surface punctuated by seamed joints that generate light and elegant escape lines parallel to the course of outflow of the roof, giving a sense of robust lightness to the roofing.
-
-

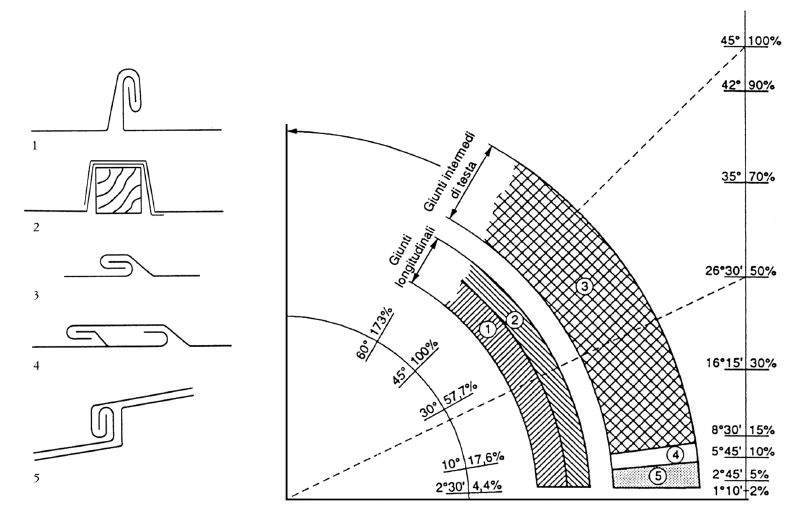

Slope
The type of roofing that can be applied varies according to the slope of the substructure and the method of making the same copper (metal) roofing.

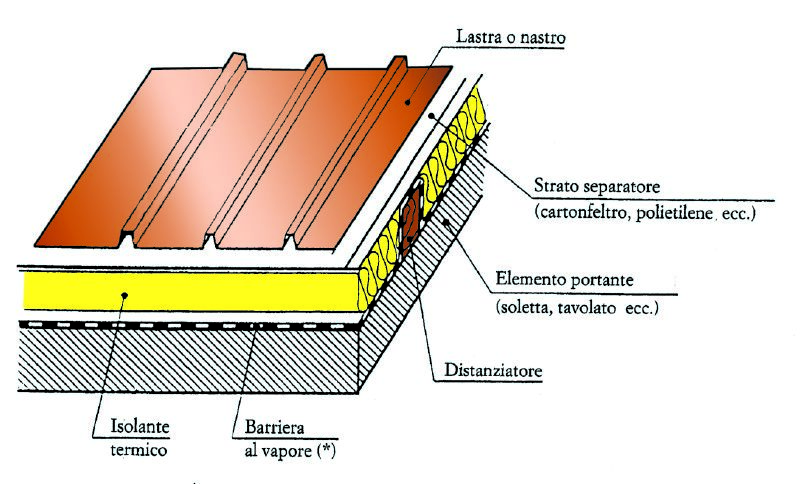

Not ventilated insulated roofing
In single ventilation, the sealing sheet is positioned below the insulation, the load-bearing element is replaced by the spacer and the second plank is eliminated.

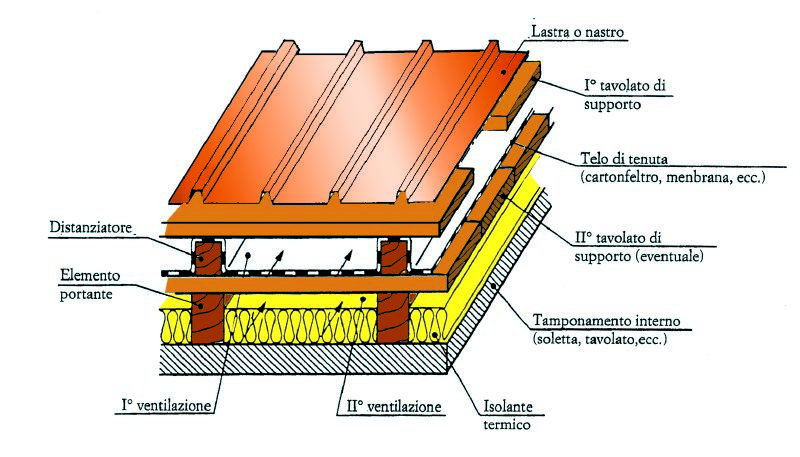

Double ventilated insulated roofing
The support element or the laying surface can be made up of wooden planks, a concrete floor or a brick and cement ceiling suitably prepared and insulated on our instructions.
-
Lightness as anti-seismic construction criterion

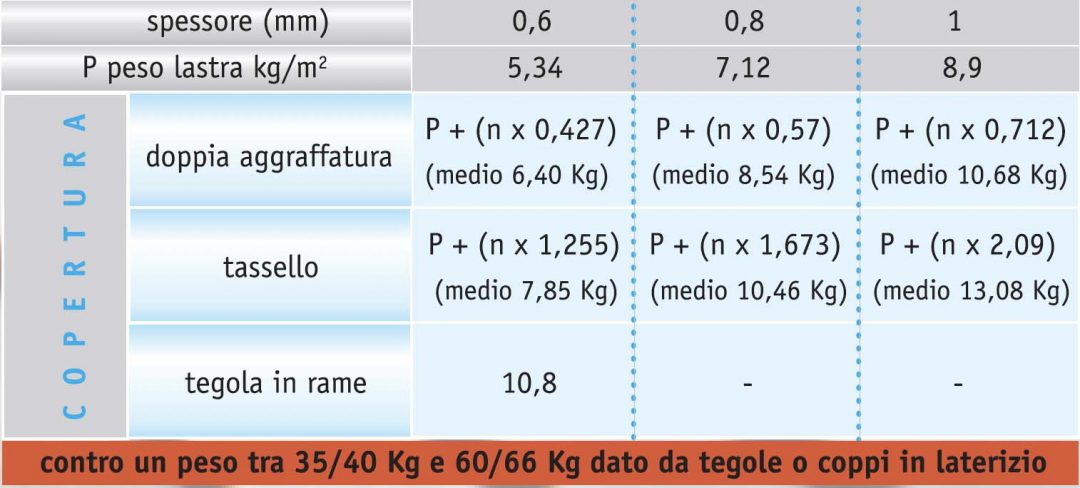

COPPER ROOFING WEIGHT TABLE
during an earthquake the stressing force F = m (mass) x a (acceleration),
therefore by halving the mass, and therefore the weight of the roofing, the stress that the structure must undergo is halved; the weight of a copper roofing is up to 10 times less
P = metal roofing sheet weight
n = number of subdivision spaces per meter
Consult the Technical Office
-

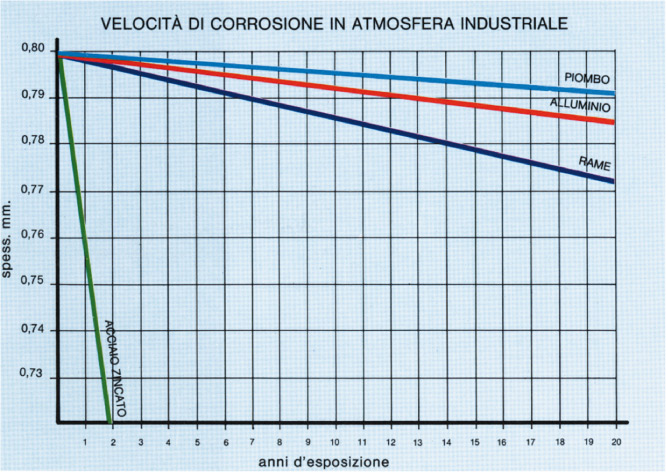

THE LONG LASTING TIME AS ECONOMIC SAVING
Thickness and quality of the material, width of the panels and frequency of the fixing points are set according to the wind load. The installation is carried out in such a way as to respect the mechanical requirements of the material and the expansion of the same, avoiding the formation over time of tearing or breaking triggers. To complete the work, all the tinsmithery and accessories for water disposal are carried out for a guaranteed turnkey metal roofing against infiltration. The same technology is applied with the use of other materials such as lead, aluminum, zinc-copper-titanium alloys, stainless steel, zinc.
-
-
Aged copper

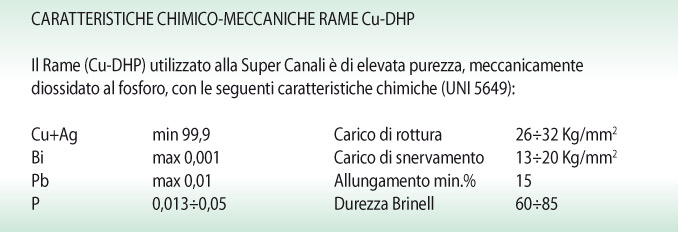

Copper as roofing material has no need of presentation: lightness of the covering, pleasant appearance and aesthetic finish of its oxidized color, longevity of the supplied and waterproofing characteristics, reduction over time of roofing maintenance costs; makes it a building technology element of the highest value and with no equal, both for residential and commercial buildings, both modern and of the past.
The opening towards new applications and solutions of materials has suggested to Super Canali the introduction of ” aged copper”.
It is first quality copper subjected to a suitably developed mechanical-chemical-thermal process in order to make immediately available the exclusive green color of the oxidizing patina that would otherwise take several decades to naturally form on site.
In fact, copper in the natural process, a cause of the combined action of humidity, oxygen and polluting agents present in the air, is characterized by a first brown patina, which then changes to anthracite brown and then develops, in more or less time depending on the location, the characteristic final green patina, the unity of sulphates and basic copper carbonates.
With the choice of aged copper, a sure exclusive note is applied to each structure.
-
